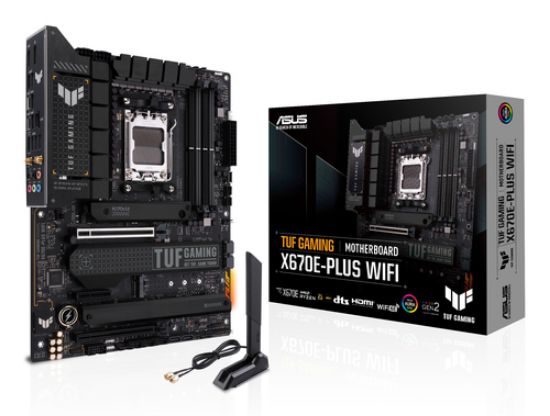

Asus TUF GAMING X670E-PLUS AMD Socket AM

Manufacturer: Asus

Manufacturer part number: X670E-PLUS

Availability: Out of stock

Delivery date: 5 days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Full Description
Tags
Specifications

Asus TUF GAMING X670E-PLUS AMD Socket AM5 ATX Motherboard : AMD X670 Chipset, WiFi 6E / 2.5Gb Ethernet

Products specifications

Attribute name	Attribute value
Warranty	1 Year Manufacturer Warranty
Packaging	Retail Box
Visual Condition	New
Condition	New Factory Sealed
Processor
Supported processor sockets	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series
Processor socket	Socket AM5
Processor manufacturer	AMD
Memory
Unbuffered memory	Yes
Maximum internal memory	192
Supported memory clock speed (max)	6400
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600,7800,8000
ECC сompatibility	ECC & Non-ECC
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Weight & dimensions
Depth	244
Width	305
Network
Bluetooth version	5.2
Bluetooth	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Packaging data
Package weight	2.55
Package height	68
Package depth	273
Package width	338
Packaging content
Drivers included	Yes
Cables included	SATA
User guide	Yes
Other features
Special features	TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers
Packaging content	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 2 x Rubber packages for M.2 2 x Screw packages for M.2 SSD Documentation 1 x TUF certification card 1 x User guide
mSATA ports quantity	0
Graphics
Maximum resolution	7680 x 4320
On-board graphics card	No
Parallel processing technology support	Not supported
Features
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Power source type	ATX
Product colour	Black
Audio output channels	7.1
Motherboard chipset	AMD X670
Motherboard chipset family	AMD
Motherboard form factor	ATX
Component for	PC
Expansion slots
Number of M.2 (M) slots	4
PCI Express OCuLink connectors (NVMe support)	0
PCI slots	0
PCI-X slots	0
Mini PCI Express slots	0
Mini PCI Express (Gen 1.x) slots	0
Mini PCI Express (Gen 2.x) slots	0
Mini PCI Express slot (full length)	0
Mini PCI Express slot (half-length)	0
PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots	0
PCI Express x16 (Gen 5.x) slots	1
PCI Express x16 (Gen 3.x) slots	0
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 2.x) slots	0
PCI Express x16 slots	0
PCI Express x8 (Gen 1.x) slots	0
PCI Express x8 slots	0
PCI Express x4 (Gen 4.x) slots	0
PCI Express x4 (Gen 2.x) slots	0
PCI Express x4 (Gen 1.x) slots	0
PCI Express x4 slots	1
PCI Express x1 (Gen 3.x) slots	0
PCI Express x1 (Gen 4.x) slots	0
PCI Express x1 (Gen 2.x) slots	0
PCI Express x1 slots	0
Internal I/O
RGB LED pin header	Yes
Number of COM connectors	1
Thunderbolt headers	1
12V power connector	Yes
EPS power connector (8-pin)	Yes
Peripheral (Molex) power connectors (4-pin)	1
Number of chassis fan connectors	4
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Front panel connector	Yes
Front panel audio connector	Yes
Number of SATA connectors	0
Number of SATA II connectors	0
Number of SATA III connectors	4
USB 3.2 Gen 2x2 connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 connectors	3
Rear panel I/O ports
S/PDIF out port	No
Microphone in	Yes
Headphone outputs	1
Line-in	Yes
DisplayPorts quantity	1
DVI-I ports quantity	0
DVI-D ports quantity	0
HDMI version	2.1
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
PS/2 ports quantity	0
Ethernet LAN (RJ-45) ports	1
USB4 Gen 2x2 ports quantity	0
USB4 Gen 3x2 ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
USB 2.0 ports quantity	0
Storage controllers
RAID levels	0, 1, 10
RAID support	Yes
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
BIOS
BIOS memory size	256
BIOS type	UEFI AMI
