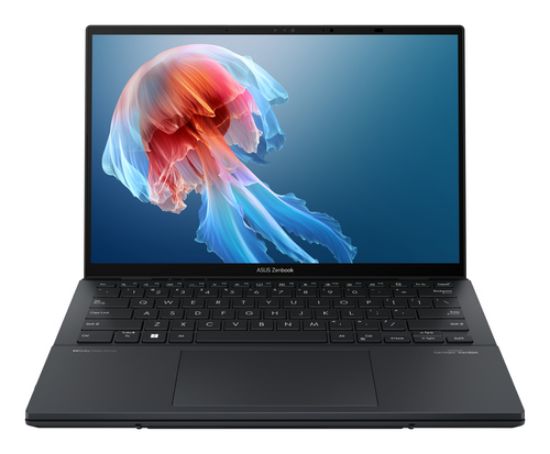

ASUS Zenbook Duo UX8406MA-DS76T Intel Core Ultra 7 155H Hybrid (2-in-1) 35.6 cm (14") Touchscreen WUXGA 16 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Grey

Intel Core Ultra 7 155H (24MB Cache), 16GB LPDDR5x-SDRAM, 1000GB SSD, 35.6 cm (14") WUXGA 1920 x 1200 OLED Touch, Intel Arc Graphics, WLAN, Webcam, Windows 11 Home 64-bit

Manufacturer: Asus

Manufacturer part number: UX8406MA-DS76T

Availability: Out of stock

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Full Description
Tags
Specifications

Asus ZenBook DUO UX8406MA-DS76T Core™ Ultra 7 155H 1TB SSD 16GB DUALl 14" WUXGA (1920x1200) TOUCHSCREENS OLED WIN11 IR Webcam INKWELL GRAY Detachable Keyboard Asus Pen

Products specifications

Attribute name	Attribute value
Warranty	1 Year Manufacturer Warranty
Packaging	Retail Box
Condition	New Factory Sealed
Price Drop	Yes
Just Launched	Yes
Processor
Processor base power	28
Maximum turbo power	115
Processor cache type	Smart Cache
Processor cache	24
Low Power Efficient-core Base Frequency	700
Efficient-core base frequency	0.9
Performance-core base frequency	1.4
Low Power Efficient-core Max Turbo Frequency	2.5
Efficient-core Max Turbo Frequency	3.8
Performance-core Max Turbo Frequency	4.8
Low Power Efficient-cores	2
Efficient cores	8
Performance cores	6
Processor boost frequency	4.8
Processor threads	22
Processor cores	16
Processor model	155H
Processor generation	Intel® Core™ Ultra (Series 1)
Processor family	Intel Core Ultra 7
Processor manufacturer	Intel
Memory
Maximum internal memory	16
Memory form factor	On-board
Internal memory type	LPDDR5x-SDRAM
Internal memory	16
Display
High Dynamic Range (HDR) technology	HDR True Black 500
High Dynamic Range (HDR) supported	Yes
Contrast ratio (typical)	1000000:1
Display response rise/fall	0.2
Maximum refresh rate	60
RGB colour space	DCI-P3
Colour gamut	100
Display brightness	400
Maximum display brightness (HDR)	500
Display surface	Gloss
Native aspect ratio	16:10
Panel type	OLED
HD type	WUXGA
Touchscreen	Yes
Display resolution	1920 x 1200
Display diagonal	35.6
Audio
Built-in microphone	Yes
Speakers manufacturer	Harman Kardon
Audio system	Smart Amp
Ports & interfaces
USB Type-C DisplayPort Alternate Mode	Yes
Combo headphone/mic port	Yes
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	2
HDMI version	2.1
HDMI ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 2.0 ports quantity	0
Weight & dimensions
Height (rear)	1.99
Height (front)	1.46
Depth	217.9
Width	313.5
Weight	1.65
Power
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
AC adapter output voltage	20
AC adapter output current	3.25
AC adapter input voltage	100 - 240
AC adapter frequency	50 - 60
AC adapter power	65
Keyboard
Numeric keypad	No
Pointing device	Touchpad
Network
Bluetooth version	5.3
Bluetooth	Yes
Ethernet LAN	No
Antenna type	2x2
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Mobile network connection	No
Storage
Optical drive type	No
SSD form factor	M.2
SSD interface	PCI Express 4.0
NVMe	Yes
SSD capacity	1
Number of SSDs installed	1
Total SSDs capacity	1
Storage media	SSD
Total storage capacity	1
Security
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Windows Hello	Yes
Face recognition	Yes
Software
Trial software	1-month trial for new Microsoft 365 customers. Credit card required.
Operating system architecture	64-bit
Operating system installed	Windows 11 Home
Camera
Infrared (IR) camera	Yes
Front camera resolution	1920 x 1080
Front camera HD type	Full HD
Front camera	Yes
Battery
Battery capacity	75
Number of battery cells	4
Battery technology	Lithium-Ion (Li-Ion)
Design
Market positioning	Home
Housing material	Aluminium, Magnesium
Form factor	Convertible (Detachable)
Colour name	Inkwell Gray
Product colour	Grey
Product type	Hybrid (2-in-1)
Graphics
On-board graphics card model	Intel Arc Graphics
On-board graphics card family	Intel Arc Graphics
On-board GPU manufacturer	Intel
Discrete graphics card model	Not available
Discrete graphics card	No
On-board graphics card	Yes
Sustainability
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, EPEAT Gold
Neural processor unit (NPU)
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML
AI datatype support on NPU	FP16, FP32, Int8
Windows Studio effects support	Yes
Sparsity support	Yes
Maximum frequency NPU	1.4
Neural processor unit (NPU)	Intel AI Boost
