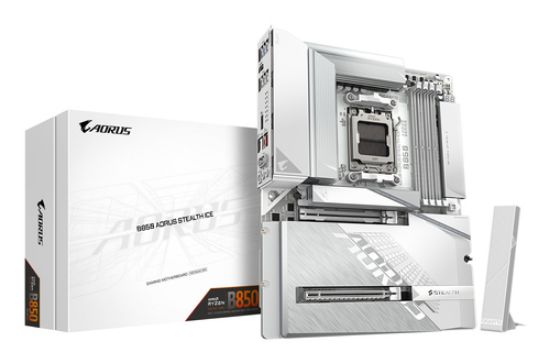

Gigabyte B850 AORUS STEALTH ICE (Socket AM5) AMD B850 ATX DDR5 Wi-Fi 7 Motherboard - White

Products specifications

Attribute name	Attribute value
Warranty	Balance of Manufacturer Warranty
Packaging	Retail Box
Visual Condition	New
Condition	New Factory Sealed
Just Launched	Yes
Technical details
Warranty period	3
Processor
Supported processor sockets	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Processor manufacturer	AMD
Memory
Maximum internal memory per slot	64
Unbuffered memory	Yes
Maximum internal memory	256
Supported memory clock speed (max)	8200
Supported memory clock speeds	8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400
ECC сompatibility	Non-ECC
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Weight & dimensions
Height	35
Depth	244
Width	305
Network
Bluetooth version	5.4
Bluetooth	Yes
WLAN controller model	Realtek RTL8922AE
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi	Yes
LAN controller	Realtek RTL8126
Ethernet interface type	5 Gigabit Ethernet
Ethernet LAN	Yes
Packaging data
Package weight	4.14
Package height	92
Package depth	340
Package width	310
Packaging content
Bundled software	Norton® Internet Security (OEM version)
Batteries included	Yes
Antenna included	Yes
Screws included	Yes
Battery
Battery type	CR2032
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells	1
Battery weight	3
Lithium weight per battery	0.0700
Other features
Weight	3.63
mSATA ports quantity	0
Graphics
DirectX version	12.0
HDCP	Yes
Maximum resolution	4096 x 2160
On-board graphics card	No
Parallel processing technology support	Not supported
Features
Windows operating systems supported	Windows 11 x64
Cooling type	Passive
Power source type	ATX
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Product colour	White
Audio output channels	7.1
Audio chip	Realtek ALC897
Motherboard chipset	AMD B850
Motherboard chipset family	AMD
Motherboard form factor	ATX
Component for	PC
Logistics data
Country of origin	China
Products per shipping (inner) case	1
Expansion slots
4th M.2 highest PCI Express generation	4.0
4th M.2 largest key size	22110
3rd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
1st M.2 highest PCI Express generation	5.0
1st M.2 largest key size	25110
Number of M.2 (M) slots	4
PCI Express x16 (Gen 5.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Internal I/O
Number of RGB LED pin headers	4
RGB LED pin header	Yes
TPM connector	Yes
12V power connector	Yes
Number of water pump connectors	3
Number of temperature sensor headers	2
Number of noise detection headers	1
Number of EPS power connectors (8-pin)	1
EPS power connector (8-pin)	Yes
Peripheral (Molex) power connectors (4-pin)	1
Number of chassis fan connectors	6
Number of CPU fan connectors	2
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Front panel connector	Yes
Front panel audio connector	Yes
Number of SATA connectors	0
Number of SATA II connectors	0
Number of SATA III connectors	2
USB 3.2 Gen 2x2 connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 connectors	2
Rear panel I/O ports
WiFi-AP antenna jack	2
Digital audio optical out	1
S/PDIF out port	Yes
Headphone outputs	1
Line-in	Yes
DVI-D ports quantity	0
HDMI version	2.1
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 2.0 ports quantity	4
Storage controllers
RAID levels	0, 1, 5, 10
RAID support	Yes
Number of HDDs supported	2
Number of storage drives supported	6
Supported storage drive interfaces	M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types	HDD & SSD
BIOS
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Clear CMOS jumper	Yes
ACPI version	5.0
BIOS memory size	512
BIOS type	UEFI AMI
