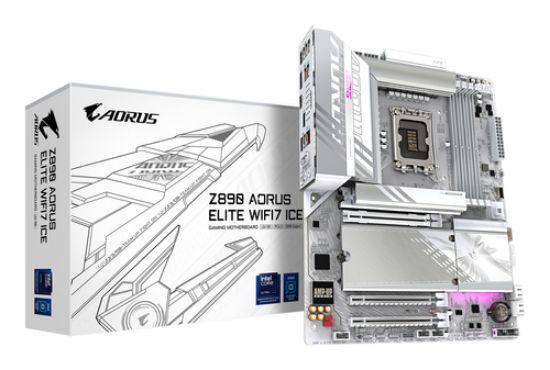

Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA

Manufacturer part number: Z890 A ELITE WF7 ICE

Availability: Out of stock

Delivery date: 7 days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Full Description
Tags
Specifications

Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard (Snow White)

Products specifications

Attribute name	Attribute value
Warranty	Balance of Manufacturer Warranty
Packaging	Retail Box
Visual Condition	New
Condition	New Factory Sealed
Just Launched	Yes
Technical details
Warranty period	3
Processor
Maximum internal memory supported by processor	256
Supported processor sockets	LGA 1851
Compatible processor series	Intel Core Ultra (Series 2)
Processor socket	LGA 1851 (Socket V1)
Processor manufacturer	Intel
Memory
Maximum internal memory	256
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Supported memory clock speed (max)	8800
Supported memory clock speeds	5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600
ECC сompatibility	Non-ECC
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Weight & dimensions
Height	35
Depth	244
Width	305
Network
Bluetooth version	5.4
Bluetooth	Yes
WLAN controller model	MediaTek MT7925
Wi-Fi standards	Wi-Fi 7 (802.11be)
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Packaging data
Package weight	3.15
Package height	80
Package depth	270
Package width	335
Packaging content
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included	Yes
Battery
Battery type	CR2032
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells	1
Battery weight	3
Lithium weight per battery	0.0700
Other features
Weight	2.87
mSATA ports quantity	0
Graphics
DirectX version	12.0
On-board graphics card	No
Features
Windows operating systems supported	Windows 11 x64
PC health monitoring	Fan, Temperature, Voltage
Product colour	Black
Audio output channels	7.1
Audio chip	Realtek ALC1220
Motherboard chipset	Intel Z890
Motherboard chipset family	Intel
Motherboard form factor	ATX
Component for	PC
Logistics data
Country of origin	China
Products per shipping (inner) case	1
Expansion slots
Number of M.2 (M) slots	4
PCI Express x16 (Gen 5.x) slots	1
PCI Express x16 (Gen 4.x) slots	2
Internal I/O
RGB LED pin header	Yes
TPM connector	Yes
12V power connector	Yes
Number of EPS power connectors (8-pin)	2
EPS power connector (8-pin)	Yes
ATX Power connector (24-pin)	Yes
Total number of SATA connectors	4
Number of SATA connectors	0
Number of SATA II connectors	0
Number of SATA III connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 connectors	2
Rear panel I/O ports
Thunderbolt ports quantity	1
S/PDIF out port	Yes
Microphone in	Yes
DisplayPorts quantity	2
DVI-D ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 2.0 ports quantity	4
Storage controllers
RAID levels	0, 1, 5, 10
RAID support	Yes
Number of HDDs supported	8
Number of storage drives supported	4
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
BIOS
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Clear CMOS button	Yes
Clear CMOS jumper	Yes
ACPI version	5.0
BIOS memory size	256
BIOS type	UEFI AMI
