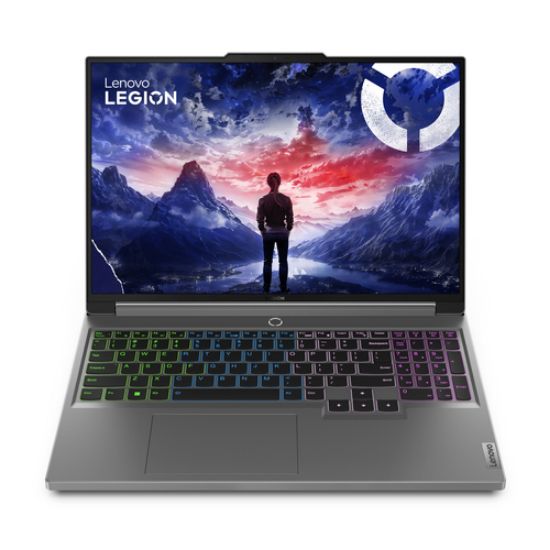

Lenovo LEGION 5 16IRX9 GAMING Core™ i7-1

Manufacturer: Lenovo

Manufacturer part number: 83DG009SUS

Availability: Out of stock

Delivery date: 7 days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Full Description
Tags
Specifications

Lenovo LEGION 5 16IRX9 GAMING Core™ i7-14650HX 1TB SSD 16GB 16" (2560x1600) 165Hz WIN11 NVIDIA® RTX 4060 8192MB LUNA GRAY RGB Backlit Keyboard

Products specifications

Attribute name	Attribute value
Warranty	1 Year Manufacturer Warranty
Packaging	Retail Box
Visual Condition	New
Condition	New Factory Sealed
Price Drop	Yes
Processor
Processor base power	55
Maximum turbo power	157
Processor cache type	Smart Cache
Processor cache	30
Efficient-core base frequency	1.6
Performance-core base frequency	2.2
Efficient-core Max Turbo Frequency	3.7
Performance-core Max Turbo Frequency	5.2
Efficient cores	8
Performance cores	8
Processor boost frequency	5.2
Processor threads	24
Processor cores	16
Processor model	i7-14650HX
Processor generation	Intel® Core™ i7 (14th gen)
Processor family	Intel® Core™ i7
Processor manufacturer	Intel
Memory
Memory channels	Dual-channel
Maximum internal memory	64
Memory slots	2x SO-DIMM
Memory layout (slots x size)	2 x 8
Memory clock speed	5600
Memory form factor	SO-DIMM
Internal memory type	DDR5-SDRAM
Internal memory	16
Display
High Dynamic Range (HDR) technology	Dolby Vision
High Dynamic Range (HDR) supported	Yes
Contrast ratio (typical)	1200:1
Maximum refresh rate	165
RGB colour space	sRGB
Colour gamut	100
Display brightness	350
Anti-glare screen	Yes
LED backlight	Yes
Native aspect ratio	16:10
Panel type	IPS
HD type	WQXGA
Touchscreen	No
Display resolution	2560 x 1600
Display diagonal	40.6
Audio
Built-in microphone	Yes
Number of microphones	2
Speaker power	2
Number of built-in speakers	2
Audio system	Nahimic Audio
Audio chip	Realtek ALC3287
Ports & interfaces
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Combo headphone/mic port	Yes
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 2.0 ports quantity	0
Weight & dimensions
Height (rear)	2.52
Height (front)	1.97
Depth	262.3
Width	359.7
Weight	2.36
Power
USB Power Delivery (USB PD)	Yes
AC adapter input voltage	100 - 240
AC adapter frequency	50/60
AC adapter power	230
Operational conditions
Maximum shipping altitude	3048
Storage relative humidity (H-H)	5 - 95
Operating relative humidity (H-H)	8 - 95
Storage temperature (T-T)	5 - 43
Operating temperature (T-T)	5 - 35
Keyboard
Keyboard language	US English
Keyboard backlit colour	RGB
Keyboard backlit zone	4-zone RGB
Numeric keypad	Yes
Keyboard backlit	Yes
Pointing device	Touchpad
Network
WWAN	Not installed
Bluetooth version	5.2
Bluetooth	Yes
Ethernet LAN data rates	100,1000
Ethernet LAN	Yes
Antenna type	2x2
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Mobile network connection	No
Storage
Compatible memory cards	MicroSD (TransFlash)
Card reader integrated	Yes
Optical drive type	No
SSD form factor	M.2
SSD interface	PCI Express 4.0
NVMe	Yes
SSD capacity	1
Number of SSDs installed	1
Total SSDs capacity	1
Storage media	SSD
Total storage capacity	1
Security
Password protection type	HDD, Power on, Supervisor
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Fingerprint reader	No
Certificates
Certification	ErP Lot 6 ErP Lot 26 TÜV Rheinland Low Blue Light (Hardware Solution)
Compliance certificates	RoHS
Software
Trial software	Office Trial
Operating system language	English
Operating system installed	Windows 11 Home
Camera
Privacy camera	Yes
Front camera resolution	1920 x 1080
Front camera HD type	Full HD
Front camera	Yes
Battery
Fast charging time (50%)	30
Fast charging	Yes
Continuous video playback time	6.5
Battery life (max)	5.7
Battery capacity	80
Battery technology	Lithium Polymer (LiPo)
Design
Housing material	Polycarbonate (PC), Acrylonitrile butadiene styrene (ABS), Aluminium
Form factor	Clamshell
Colour name	Luna Grey
Product colour	Grey
Product type	Laptop
Graphics
NVIDIA G-SYNC	Yes
On-board graphics card model	Intel® UHD Graphics
On-board graphics card family	Intel® UHD Graphics
On-board GPU manufacturer	Intel
Discrete graphics memory type	GDDR6
Discrete graphics card memory	8
Discrete graphics card model	NVIDIA GeForce RTX 4060
Discrete GPU manufacturer	NVIDIA
Discrete graphics card	Yes
On-board graphics card	Yes
Performance
Motherboard chipset	Intel HM770
