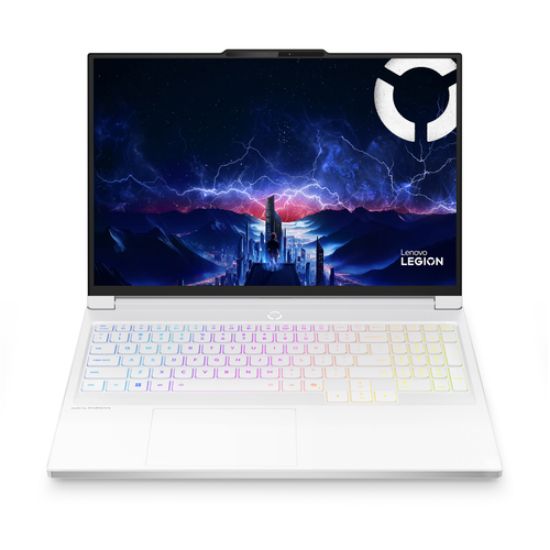

Lenovo Legion 7 16IAX10 GAMING Core™ Ult

Manufacturer: Lenovo

Manufacturer part number: 83KY0007US

Availability: Out of stock

Delivery date: 7 days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Full Description
Tags
Specifications

Lenovo Legion 7 16IAX10 GAMING Core™ Ultra 7 255HX 1TB SSD 32GB 16" WQXGA (2560x1600) OLED 165Hz WIN11 IR Webcam NVIDIA® RTX 5060 8192MB GLACIER WHITE RGB Backlit Keyboard

Products specifications

Attribute name	Attribute value
Warranty	1 Year Manufacturer Warranty
Packaging	Branded Box
Visual Condition	New
Condition	New Factory Sealed
Processor
Processor base power	55
Maximum turbo power	160
Processor cache	30
Efficient-core base frequency	1.8
Performance-core base frequency	2.4
Efficient-core Max Turbo Frequency	4.5
Performance-core Max Turbo Frequency	5.2
Efficient cores	12
Performance cores	8
Processor boost frequency	5.2
Processor threads	20
Processor cores	20
Processor model	255HX
Processor generation	Intel Core Ultra (Series 2)
Processor family	Intel Core Ultra 7
Processor manufacturer	Intel
Memory
Memory channels	Dual-channel
Maximum internal memory	32
Memory slots	2x SO-DIMM
Memory layout (slots x size)	2 x 16
Memory clock speed	5600
Memory form factor	SO-DIMM
Internal memory type	DDR5-SDRAM
Internal memory	32
Display
High Dynamic Range (HDR) technology	DisplayHDR True Black 1000, Dolby Vision
High Dynamic Range (HDR) supported	Yes
Contrast ratio (typical)	100000:1
Maximum refresh rate	165
RGB colour space	DCI-P3
Colour gamut	100
Display brightness	500
Display surface	Gloss
Native aspect ratio	16:10
Panel type	OLED
HD type	WQXGA
Touchscreen	No
Display resolution	2560 x 1600
Display diagonal	40.6
Audio
Built-in microphone	Yes
Number of microphones	2
Speaker power	2
Speakers manufacturer	Harman Kardon
Number of built-in speakers	2
Audio system	Nahimic Audio
Audio chip	Realtek ALC3306
Ports & interfaces
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Combo headphone/mic port	Yes
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	1
HDMI version	2.1
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 2.0 ports quantity	0
Weight & dimensions
Height (rear)	1.79
Height (front)	1.59
Depth	263.4
Width	361.7
Weight	2
Power
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
AC adapter input voltage	100 - 240
AC adapter frequency	50/60
AC adapter power	245
Operational conditions
Maximum shipping altitude	3048
Storage relative humidity (H-H)	5 - 95
Operating relative humidity (H-H)	8 - 95
Storage temperature (T-T)	5 - 43
Operating temperature (T-T)	5 - 35
Keyboard
Copilot key	Yes
Keyboard language	English
Keyboard backlit colour	RGB
Keyboard backlit zone	Per-key RGB
Numeric keypad	Yes
Keyboard backlit	Yes
Pointing device	Touchpad
Network
WWAN	Not installed
Bluetooth version	5.4
Bluetooth	Yes
Ethernet LAN	No
Antenna type	2x2
Wi-Fi standards	Wi-Fi 7 (802.11be)
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Mobile network connection	No
Storage
Compatible memory cards	SD
Card reader integrated	Yes
Optical drive type	No
SSD form factor	M.2
M.2 SSD size	2242 (22 x 42 mm)
SSD interface	PCI Express 4.0
NVMe	Yes
SSD capacity	1
Number of SSDs installed	1
Total SSDs capacity	1
Storage media	SSD
Total storage capacity	1
Security
Password protection type	BIOS, HDD, Power on
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Fingerprint reader	No
Certificates
Certification	ErP Lot 3 TÜV Rheinland® Flicker Free TÜV Rheinland® High Gaming Performance TÜV Rheinland® Low Blue Light (Hardware Solution)
Compliance certificates	RoHS
Software
Bundled software	Office Trial + Lenovo AI Now
Operating system language	English
Operating system installed	Windows 11 Home
Camera
Privacy type	Webcam kill switch
Privacy camera	Yes
Infrared (IR) camera	Yes
Front camera resolution (numeric)	5
Front camera	Yes
Packaging content
AC adapter included	Yes
Battery
Fast charging time (50%)	30
Fast charging	Yes
Continuous video playback time	7.18
Battery life (max)	3.98
Battery capacity	84
Battery technology	Lithium-Ion (Li-Ion)
Design
Market positioning	Gaming
Housing material	Aluminium
Form factor	Clamshell
Colour name	Glacier White
Product colour	White
Product type	Laptop
Graphics
NVIDIA G-SYNC	Yes
On-board graphics card model	Intel® Graphics
On-board graphics card family	Intel® Graphics
On-board GPU manufacturer	Intel
Discrete graphics memory type	GDDR7
Discrete graphics card memory	8
Discrete graphics card model	NVIDIA GeForce RTX 5060
Discrete GPU manufacturer	NVIDIA
Discrete graphics card	Yes
On-board graphics card	Yes
Performance
Motherboard chipset	Intel HM870
Neural processor unit (NPU)
GPU performance up to	8
NPU performance up to	13
Total processor performance up to	33
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Windows Studio effects support	Yes
Sparsity support	Yes
Neural processor unit (NPU)	Intel AI Boost
