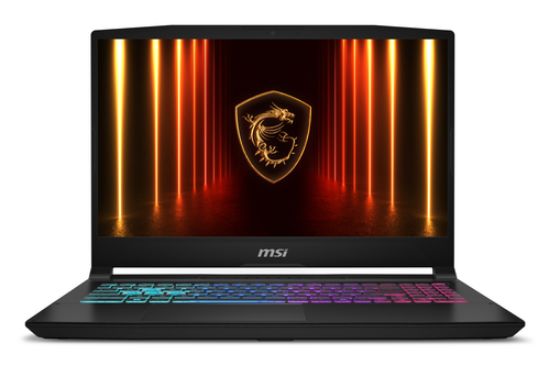

MSI KATANA 15 HX B14WEK-001 GAMING Core™

Manufacturer: MSI

Manufacturer part number: Katana 15 HX B14WEK-001US

Availability: 1 in stock

Delivery date: 6 days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Full Description
Tags
Specifications

MSI KATANA 15 HX B14WEK-001 GAMING Core™ i7-14650HX 512GB SSD 16GB 15.6" (1920x1080) 144Hz WIN11 NVIDIA® RTX 5050 8192MB BLACK RGB Backlit Keyboard

Products specifications

Attribute name	Attribute value
Warranty	1 Year Manufacturer Warranty
Packaging	Retail Box
Condition	New Factory Sealed
Price Drop	Yes
Just Launched	Yes
Processor
Processor base power	55
Maximum turbo power	157
Processor cache type	Smart Cache
Processor cache	30
Efficient-core base frequency	1.6
Performance-core base frequency	2.2
Efficient-core Max Turbo Frequency	3.7
Performance-core Max Turbo Frequency	5.2
Efficient cores	8
Performance cores	8
Processor boost frequency	5.2
Processor threads	24
Processor cores	16
Processor model	i7-14650HX
Processor generation	Intel® Core™ i7 (14th gen)
Processor family	Intel® Core™ i7
Processor manufacturer	Intel
Memory
Maximum internal memory	96
Memory slots	2x SO-DIMM
Memory layout (slots x size)	2 x 8
Memory clock speed	5600
Internal memory type	DDR5-SDRAM
Internal memory	16
Display
Maximum refresh rate	144
RGB colour space	NTSC
Colour gamut	45
Anti-glare screen	Yes
Native aspect ratio	16:9
Panel type	IPS-Level
HD type	Full HD
Touchscreen	No
Display resolution	1920 x 1080
Display diagonal	39.6
Audio
Speaker power	2
Number of built-in speakers	2
Audio system	NAHIMIC 3
Ports & interfaces
USB Type-C DisplayPort Alternate Mode	Yes
Combo headphone/mic port	Yes
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 2.0 ports quantity	0
Weight & dimensions
Height	25.5
Depth	262
Width	359
Weight	2.4
Power
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
DC-in jack	Yes
AC adapter power	240
Keyboard
Copilot key	Yes
Keyboard number of keys	99
Keyboard backlit colour	RGB
Keyboard backlit zone	4-zone RGB
Numeric keypad	Yes
Keyboard backlit	Yes
Pointing device	Touchpad
Network
Bluetooth version	5.3
Bluetooth	Yes
Ethernet LAN data rates	10,100,1000,2500
Ethernet LAN	Yes
WLAN controller model	Intel Wi-Fi 6E AX211
WLAN controller manufacturer	Intel
Antenna type	2x2
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Mobile network connection	No
Storage
Optical drive type	No
SSD form factor	M.2
SSD interface	PCI Express 4.0
NVMe	Yes
SSD capacity	512
Number of SSDs installed	1
Total SSDs capacity	512
Storage media	SSD
Total storage capacity	512
Security
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Windows 11 Home
Camera
Video capturing speed	30
Front camera resolution	1280 x 720
Front camera HD type	HD
Front camera	Yes
Packaging content
AC adapter included	Yes
Battery
Battery capacity	75
Number of battery cells	3
Battery technology	Lithium Polymer (LiPo)
Other features
Warranty period	1
Design
Original brand name	MSI
Form factor	Clamshell
Product colour	Black
Product type	Laptop
Graphics
On-board graphics card model	Intel® UHD Graphics
On-board graphics card family	Intel® UHD Graphics
On-board GPU manufacturer	Intel
Discrete graphics memory type	GDDR7
Discrete graphics card memory	8
Discrete graphics card model	NVIDIA GeForce RTX 5050
Discrete GPU manufacturer	NVIDIA
Discrete graphics card	Yes
On-board graphics card	Yes
Performance
Motherboard chipset	Intel HM770
